SKY-CDC Cyclone Dust Collector
A cyclone pre-separator that drops the coarse fraction out of the airstream before it reaches the cartridge filter, which is what keeps media cleanable in dusty processes.
Cyclone Dust Collectors
Pre-separation for heavy dust loads
Dust-laden air enters tangentially and spins; the heavy particles drop down the cone into the discharge, while the fine fraction carries on to the filter stage.
Upstream pre-separation is the single most effective way to extend cartridge life in woodworking, mineral and foundry dust.
The cyclone can be supplied as a stand-alone discharge unit or as the first stage of a cartridge system.
- Series
- SKY-CDC
- Models
- 4 variations
- Lead time
- Confirm on enquiry
Construction & features
- Pulse-jet cleaningCompressed-air cleaning is triggered from the control panel; the cartridge pack is cleaned in place without opening the unit.

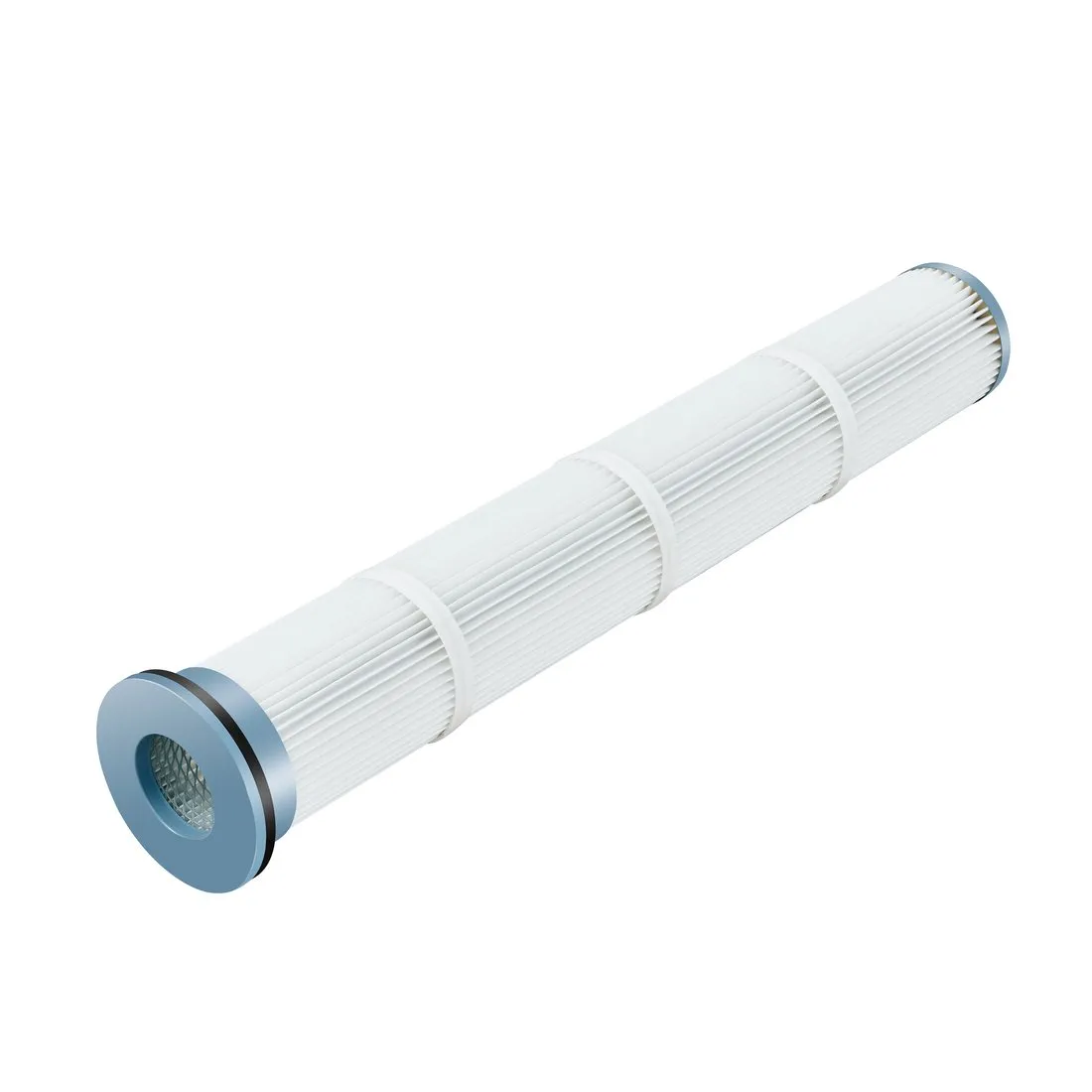

- Cartridge platformRuns the KNT and PS pleated elements in this catalogue, so replacement media is always available from stock.
- Built for serviceRemovable dust drawer or bin, inspection door and quick-release clamps keep routine maintenance short.
- Configured to your processAir volume, filtration area, voltage and duct connection are matched to your extraction points before the unit ships.
Typical applications
- Woodworking and MDF
- Cement and minerals
- Foundry cleaning
- Bulk powder handling
Model selection table
| Size D×H (mm) | Air volume @ 12 m/s (m³/h) | Air volume @ 15 m/s (m³/h) | Air volume @ 18 m/s (m³/h) |
|---|---|---|---|
| Φ552×2355 | 1000 | 1200 | 1500 |
| Φ762×3250 | 2000 | 2500 | 3000 |
| Φ966×3966 | 3000 | 3800 | 4500 |
| Φ1111×4435 | 4000 | 5000 | 6000 |
Size is the overall diameter × height; the three air-volume columns are the handling capacity at the stated inlet velocity. The English edition prints Φ964×3966 for the third size (Chinese edition Φ966×3966) — pending confirmation. Values to be confirmed against the final technical datasheet before ordering.
